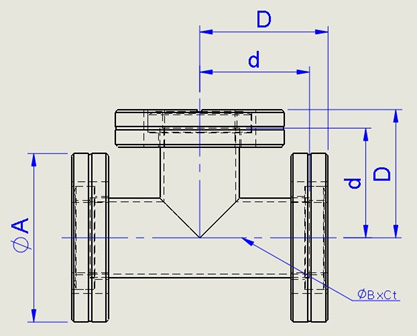

| P/N | SIZE | ØA | ØB | C | D | d |  |
|
|---|---|---|---|---|---|---|---|---|
 |
CTEC13HF | CF1.33(3H-3F) | 34 | 19.05 | 1.2 | 32.8 | 28.5 | 2D / 3D |
|
CTEC13HR | CF1.33(3H-3R) | 34 | 19.05 | 1.2 | 32.8 | 28.5 | 2D / 3D |
|
CTEC13TF | CF1.33(3T-3F) | 34 | 19.05 | 1.2 | 32.8 | 28.5 | 2D / 3D |
|
CTEC13TR | CF1.33(3T-3R) | 34 | 19.05 | 1.2 | 32.8 | 28.5 | 2D / 3D |
|
CTEC21HF | CF2.125(3H-3F) | 53.8 | 25.4 | 1.2 | 43.9 | 35 | 2D / 3D |
|
CTEC21HR | CF2.125(3H-3R) | 53.8 | 25.4 | 1.2 | 40.9 | 35 | 2D / 3D |
|
CTEC21TF | CF2.125(3T-3F) | 53.8 | 25.4 | 1.2 | 43.9 | 35 | 2D / 3D |
|
CTEC21TR | CF2.125(3T-3R) | 53.8 | 25.4 | 1.2 | 40.9 | 35 | 2D / 3D |
|
CTEC27HF | CF2.75(3H-3F) | 69.5 | 38.1 | 1.2 | 55.7 | 50 | 2D / 3D |
|
CTEC27HR | CF2.75(3H-3R) | 69.5 | 38.1 | 1.2 | 55.7 | 50 | 2D / 3D |
|
CTEC27TF | CF2.75(3T-3F) | 69.5 | 38.1 | 1.2 | 55.7 | 50 | 2D / 3D |
|
CTEC27TR | CF2.75(3T-3R) | 69.5 | 38.1 | 1.2 | 55.7 | 50 | 2D / 3D |
|
CTEC33HF | CF3.375(3H-3F) | 86 | 50.8 | 1.5 | 68 | 60 | 2D / 3D |
|
CTEC33HR | CF3.375(3H-3R) | 86 | 50.8 | 1.5 | 67.5 | 60 | 2D / 3D |
|
CTEC33TF | CF3.375(3T-3F) | 86 | 50.8 | 1.5 | 68 | 60 | 2D / 3D |
|
CTEC33TR | CF3.375(3T-3R) | 86 | 50.8 | 1.5 | 67.5 | 60 | 2D / 3D |
|
CTEC45HF | CF4.5(3H-3F) | 113.5 | 63.5 | 1.5 | 88.5 | 79 | 2D / 3D |
|
CTEC45HR | CF4.5(3H-3R) | 113.5 | 63.5 | 1.5 | 89.7 | 79 | 2D / 3D |
|
CTEC45TF | CF4.5(3T-3F) | 113.5 | 63.5 | 1.5 | 88.5 | 79 | 2D / 3D |
|
CTEC45TR | CF4.5(3T-3R) | 113.5 | 63.5 | 1.5 | 89.7 | 79 | 2D / 3D |
|
CTEC06HF | CF6(3H-3F) | 152 | 101.6 | 2 | 140 | 130 | 2D / 3D |
|
CTEC06HR | CF6(3H-3R) | 152 | 101.6 | 2 | 141.3 | 130 | 2D / 3D |
|
CTEC06TF | CF6(3T-3F) | 152 | 101.6 | 2 | 140 | 130 | 2D / 3D |
|
CTEC06TR | CF6(3T-3R) | 152 | 101.6 | 2 | 141.3 | 130 | 2D / 3D |
| FIX | ROTA |
|---|---|
 |
 |
