Accuracy of welding

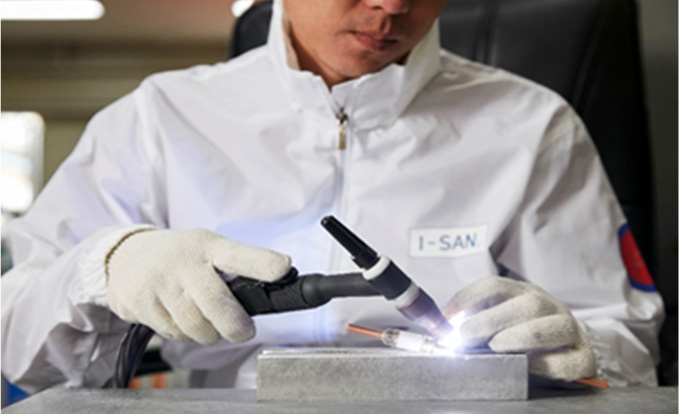

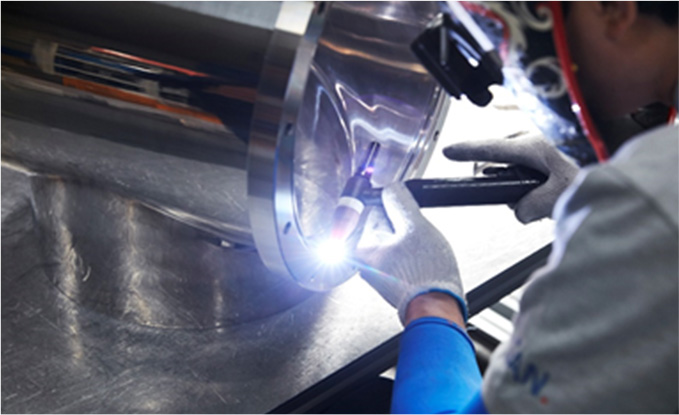

  • Accuracy of Welding

    To minimize deformation from welding, we use optimal ZIG. Products requiring high precision are processed a secondary machining (No.45867850) to correct for any deviation from the target measurement. In cases of high-vacuum environment, we use the back bead welding process to manufacture vacuum pipes. To prevent oxidation and minimize outgassing, we weld only after nitrogen charging.

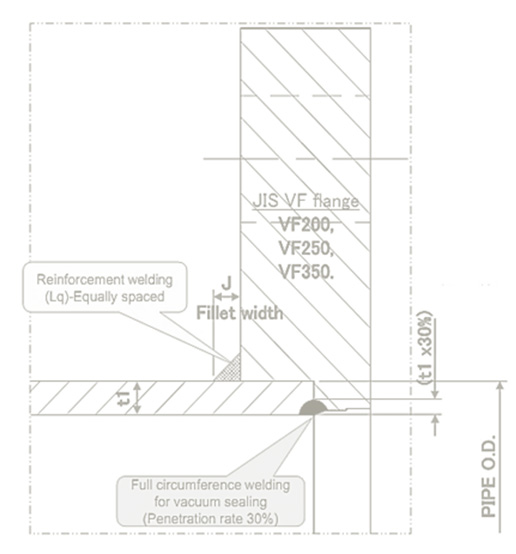

  • We use different welding processes depending on the environment and characteristic called for. Smallcaliber ports connected to vacuum pipes are relatively weak to physical force. We resolve this by testing tensile strength.
    We adhere to the manufacture, management and inspection standards for vacuum welding.

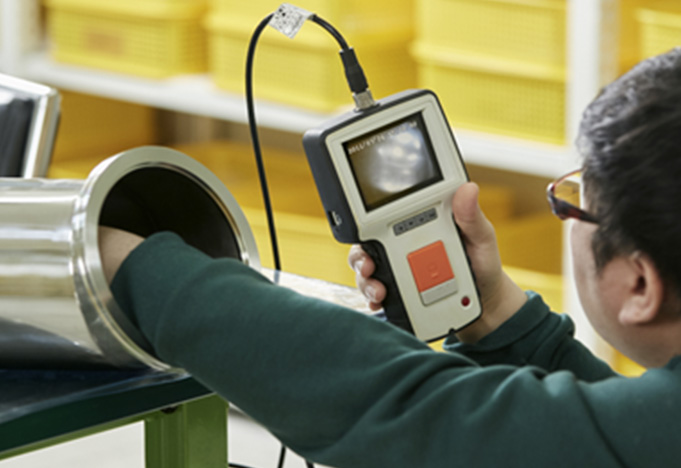

  • Condition of inside welding

    We check the interior welding status, which is the most important part of vacuum pipe quality control. We focus not only on the exterior condition of our products but also the interior, which directly affect product performance.

    1. □ Back bead

    2. □ Autogenous

    3. □ Fillet
