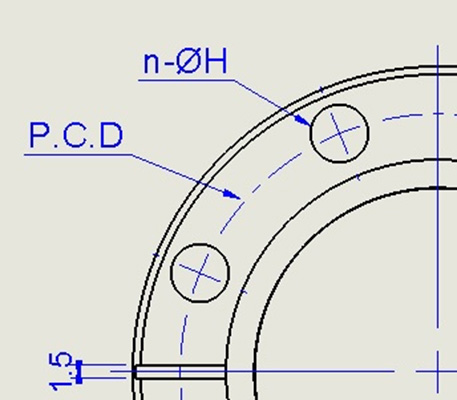

| P/N | SIZE | ØA | ØE | ØB | ØC | T | T1 | T2 | H | n | P.C.D | BLANK | BORED |  |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

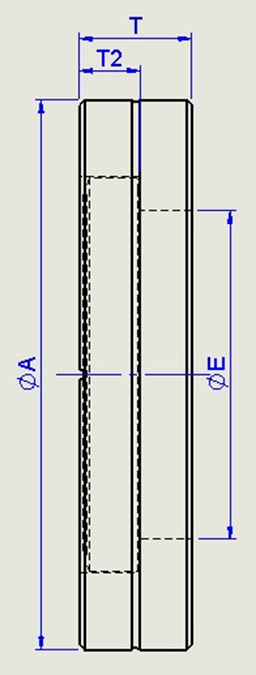

BBLC13HR | CF1.33-BLANK-H | 34 | 19.4 | 7.3 | 5.8 | 4.5 | 6 | 27 |  |
 |
2D / 3D | |||
|
BBLC13TR | CF1.33-BLANK-T | 34 | 19.4 | 7.3 | 5.8 | M4 | 6 | 27 | 2D / 3D | |||||
|

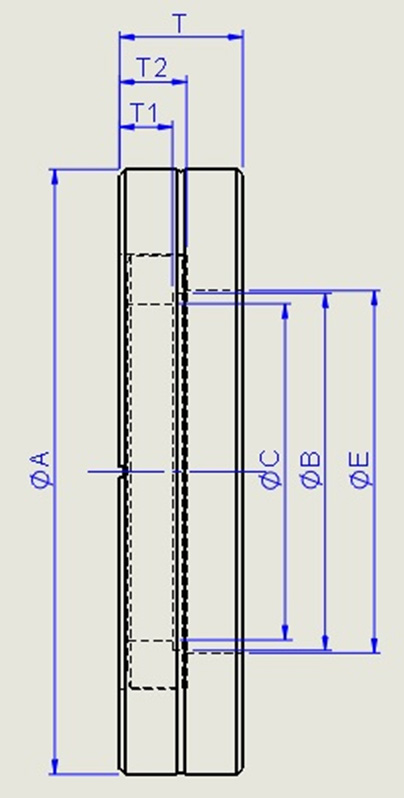

BBOC13HR | CF1.33-BORED-H | 34 | 19.4 | 19.05 | 16.6 | 7.3 | 4.3 | 5.8 | 4.5 | 6 | 27 | 2D / 3D | ||
|
BBOC13TR | CF1.33-BORED-T | 34 | 19.4 | 19.05 | 16.6 | 7.3 | 4.3 | 5.8 | M4 | 6 | 27 | 2D / 3D | ||
|
BBLC21HR | CF2.125-BLANK-H | 53.8 | 26.4 | 11.9 | 7.4 | 6.6 | 4 | 41.2 | 2D / 3D | |||||
|
BBLC21TR | CF2.125-BLANK-T | 53.8 | 26.4 | 11.9 | 7.4 | M6 | 4 | 41.2 | 2D / 3D | |||||
|
BBOC21HR | CF2.125-BORED-H | 53.8 | 26.4 | 25.6 | 23.8 | 11.9 | 5.9 | 7.4 | 6.6 | 4 | 41.2 | 2D / 3D | ||
|
BBOC21TR | CF2.125-BORED-T | 53.8 | 26.4 | 25.6 | 23.8 | 11.9 | 5.9 | 7.4 | M6 | 4 | 41.2 | 2D / 3D | ||
|
BBLC27HR | CF2.75-BLANK-H | 69.5 | 39 | 12.7 | 7.2 | 6.6 | 6 | 58.7 | 2D / 3D | |||||
|
BBLC27TR | CF2.75-BLANK-T | 69.5 | 39 | 12.7 | 7.2 | M6 | 6 | 58.7 | 2D / 3D | |||||
|
BBOC27HR | CF2.75-BORED-H | 69.5 | 39 | 38.1 | 35.7 | 12.7 | 5.7 | 7.2 | 6.6 | 6 | 58.7 | 2D / 3D | ||
|
BBOC27TR | CF2.75-BORED-T | 69.5 | 39 | 38.1 | 35.7 | 12.7 | 5.7 | 7.2 | M6 | 6 | 58.7 | 2D / 3D | ||
|
BBLC33HR | CF3.375-BLANK-H | 86 | 51.5 | 17.5 | 9.5 | 8.6 | 8 | 72.4 | 2D / 3D | |||||
|
BBLC33TR | CF3.375-BLANK-T | 86 | 51.5 | 17.5 | 9.5 | M8 | 8 | 72.4 | 2D / 3D | |||||
|
BBOC33HR | CF3.375-BORED-H | 86 | 51.5 | 50.8 | 47.8 | 17.5 | 7.5 | 9.5 | 8.6 | 8 | 72.4 | 2D / 3D | ||
|
BBOC33TR | CF3.375-BORED-T | 86 | 51.5 | 50.8 | 47.8 | 17.5 | 7.5 | 9.5 | M8 | 8 | 72.4 | 2D / 3D | ||
|
BBLC45HR | CF4.5-BLANK-H | 113.5 | 64.5 | 19 | 12.7 | 8.6 | 8 | 92.1 | 2D / 3D | |||||
|
BBLC45TR | CF4.5-BLANK-T | 113.5 | 64.5 | 19 | 12.7 | M8 | 8 | 92.1 | 2D / 3D | |||||
|
BBOC45HR | CF4.5-BORED-H | 113.5 | 64.5 | 63.5 | 60.5 | 19 | 10.7 | 12.7 | 8.6 | 8 | 92.1 | 2D / 3D | ||
|
BBOC45TR | CF4.5-BORED-T | 113.5 | 64.5 | 63.5 | 60.5 | 19 | 10.7 | 12.7 | M8 | 8 | 92.1 | 2D / 3D | ||
|
BBLC06HR | CF6-BLANK-H | 152 | 103 | 21.5 | 14.3 | 8.6 | 16 | 130.2 |  |
2D / 3D | ||||
|
BBLC06TR | CF6-BLANK-T | 152 | 103 | 21.5 | 14.3 | M8 | 16 | 130.2 | 2D / 3D | |||||
|
BBOC06HR | CF6-BORED-H | 152 | 103 | 101.6 | 97.6 | 21.5 | 11.3 | 14.3 | 8.6 | 16 | 130.2 | 2D / 3D | ||
|
BBOC06TR | CF6-BORED-T | 152 | 103 | 101.6 | 97.6 | 21.5 | 11.3 | 14.3 | M8 | 16 | 130.2 | 2D / 3D | ||
|
BBLC08HR | CF8-BLANK-H | 203 | 154 | 24 | 15.8 | 8.6 | 20 | 181 | 2D / 3D | |||||
|
BBLC08TR | CF8-BLANK-T | 203 | 154 | 24 | 15.8 | M8 | 20 | 181 | 2D / 3D | |||||
|
BBOC08HR | CF8-BORED-H | 203 | 154 | 152.4 | 148.4 | 24 | 12.8 | 15.8 | 8.6 | 20 | 181 | 2D / 3D | ||
|
BBOC08TR | CF8-BORED-T | 203 | 154 | 152.4 | 148.4 | 24 | 12.8 | 15.8 | M8 | 20 | 181 | 2D / 3D | ||
|
BBLC10HR | CF10-BLANK-H | 254 | 206 | 25 | 17.2 | 8.6 | 24 | 231.8 | 2D / 3D | |||||
|
BBLC10TR | CF10-BLANK-T | 254 | 206 | 25 | 17.2 | M8 | 24 | 231.8 | 2D / 3D | |||||
|
BBOC10HR | CF10-BORED-H | 254 | 206 | 203.2 | 199 | 25 | 12.2 | 17.2 | 8.6 | 24 | 231.8 | 2D / 3D | ||
|
BBOC10TR | CF10-BORED-T | 254 | 206 | 203.2 | 199 | 25 | 12.2 | 17.2 | M8 | 24 | 231.8 | 2D / 3D | ||
|
BBLC12HR | CF12-BLANK-H | 304 | 256 | 28.6 | 8.6 | 32 | 284 | 2D / 3D | ||||||
|
BBLC12TR | CF12-BLANK-T | 304 | 256 | 28.6 | M8 | 32 | 284 | 2D / 3D | ||||||
|
BBOC12HR | CF12-BORED-H | 304 | 256 | 254.6 | 250.8 | 28.6 | 15.6 | 20.6 | 8.6 | 32 | 284 | 2D / 3D | ||
|
BBOC12TR | CF12-BORED-T | 304 | 256 | 254.6 | 250.8 | 28.6 | 15.6 | 20.6 | M8 | 32 | 284 | 2D / 3D | ||
|
BBLC14HR | CF14-BLANK-H | 355.6 | 270 | 28.5 | 10 | 30 | 325.4 | 2D / 3D | ||||||
|
BBLC14TR | CF14-BLANK-T | 355.6 | 270 | 28.5 | M10 | 30 | 325.4 | 2D / 3D | ||||||
|
BBOC14HR | CF14-BORED-H | 355.6 | 270 | 267.8 | 263.8 | 28.5 | 12.6 | 19.6 | 10 | 30 | 325.4 | 2D / 3D | ||
|
BBOC14TR | CF14-BORED-T | 355.6 | 270 | 267.6 | 263.8 | 28.5 | 12.6 | 19.6 | M10 | 30 | 325.4 | 2D / 3D | ||
