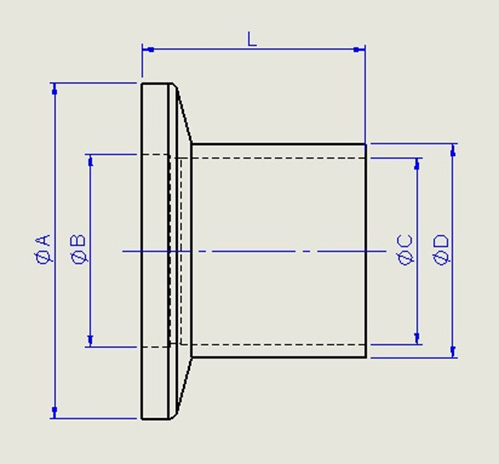

| P/N | SIZE | ØA | ØB | ØC | ØD | L |  |
 |
|
|---|---|---|---|---|---|---|---|---|---|
 |
BHAN16 | NW16-20L | 30 | 17.2 | 16.65 | 19.05 | 20 | 2D / 3D | |
|
BHAN16F | NW16(SCH)-20L | 30 | 17.2 | 17.5 | 21.7 | 20 | 2D / 3D | |
|
CHAN16 | NW16-50L | 30 | 17.2 | 16.65 | 19.05 | 50 | 2D / 3D | |
|
CHAN16F | NW16(SCH)-50L | 30 | 17.2 | 17.5 | 21.7 | 50 | 2D / 3D | |
|
BHAN25 | NW25-20L | 40 | 26.2 | 23 | 25.4 | 20 | 2D / 3D | |
|
BHAN25F | NW25(SCH)-20L | 40 | 26.2 | 23 | 27.2 | 20 | 2D / 3D | |
|
CHAN25 | NW25-50L | 40 | 26.2 | 23 | 25.4 | 50 | 2D / 3D | |
|
CHAN25F | NW25(SCH)-50L | 40 | 26.2 | 23 | 27.2 | 50 | 2D / 3D | |
|
BHAN40 | NW40-20L | 55 | 41.2 | 35.7 | 38.1 | 20 | 2D / 3D | |
|
BHAN40F | NW40(SCH)-20L | 55 | 41.2 | 37.1 | 42.7 | 20 | 2D / 3D | |
|
CHAN40 | NW40-50L | 55 | 41.2 | 35.7 | 38.1 | 50 | 2D / 3D | |
|
CHAN40F | NW40(SCH)-50L | 55 | 41.2 | 37.1 | 42.7 | 50 | 2D / 3D | |
|
BHAN50 | NW50-20L | 75 | 52.2 | 47.8 | 50.8 | 20 | 2D / 3D | |
|
BHAN50F | NW50(SCH)-20L | 75 | 52.2 | 54.9 | 60.5 | 20 | 2D / 3D | |
|
CHAN50 | NW50-50L | 75 | 52.2 | 47.8 | 50.8 | 50 | 2D / 3D | |
|
CHAN50F | NW50(SCH)-50L | 75 | 52.2 | 54.9 | 60.5 | 50 | 2D / 3D |
