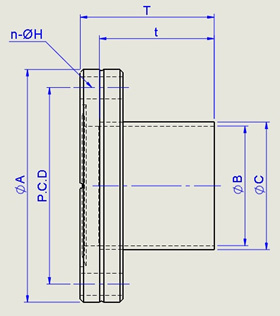

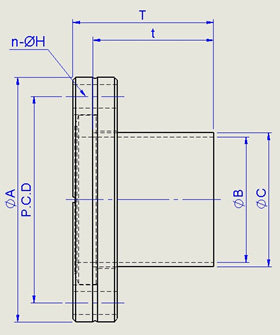

| P/N | SIZE | ØA | ØB | ØC | T | t | n | H | P.C.D | FIX |  |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CHAC13HF | CF1.33-FIX-HOLE | 34 | 16.65 | 19.05 | 40 | 35.7 | 6 | 4.5 | 27 |  |
2D / 3D |
|
CHAC13TF | CF1.33-FIX-TAB | 34 | 16.65 | 19.05 | 40 | 35.7 | 6 | M4 | 27 | 2D / 3D | |
|
CHAC13HR | CF1.33-ROTA-HOLE | 34 | 16.65 | 19.05 | 40 | 35.7 | 6 | 4.5 | 27 | 2D / 3D | |
|
CHAC13TR | CF1.33-ROTA-TAB | 34 | 16.65 | 19.05 | 40 | 35.7 | 6 | M4 | 27 | 2D / 3D | |
|
CHAC21HF | CF2.125-FIX-HOLE | 53.8 | 23 | 25.4 | 40 | 31.1 | 4 | 6.6 | 41.2 | 2D / 3D | |
|
CHAC21TF | CF2.125-FIX-TAB | 53.8 | 23 | 25.4 | 40 | 31.1 | 4 | M6 | 41.2 | 2D / 3D | |
|
CHAC21HR | CF2.125-ROTA-HOLE | 53.8 | 23 | 25.4 | 40 | 34.1 | 4 | 6.6 | 41.2 | 2D / 3D | |
|
CHAC21TR | CF2.125-ROTA-TAB | 53.8 | 23 | 25.4 | 40 | 34.1 | 4 | M6 | 41.2 | 2D / 3D | |
|
CHAC27HF | CF2.75-FIX-HOLE | 69.5 | 35.7 | 38.1 | 40 | 34.3 | 6 | 6.6 | 58.7 | 2D / 3D | |
|
CHAC27TF | CF2.75-FIX-TAB | 69.5 | 35.7 | 38.1 | 40 | 34.3 | 6 | M6 | 58.7 | 2D / 3D | |
|
CHAC27HR | CF2.75-ROTA-HOLE | 69.5 | 35.7 | 38.1 | 40 | 34.3 | 6 | 6.6 | 58.7 | 2D / 3D | |
|
CHAC27TR | CF2.75-ROTA-TAB | 69.5 | 35.7 | 38.1 | 40 | 34.3 | 6 | M6 | 58.7 | 2D / 3D | |
|
CHAC33HF | CF3.375-FIX-HOLE | 86 | 47.8 | 50.8 | 40 | 32 | 8 | 8.6 | 72.4 | 2D / 3D | |
|
CHAC33TF | CF3.375-FIX-TAB | 86 | 47.8 | 50.8 | 40 | 32 | 8 | M8 | 72.4 | 2D / 3D | |
|
CHAC33HR | CF3.375-ROTA-HOLE | 86 | 47.8 | 50.8 | 40 | 32.5 | 8 | 8.6 | 72.4 | 2D / 3D | |
|
CHAC33TR | CF3.375-ROTA-TAB | 86 | 47.8 | 50.8 | 40 | 32.5 | 8 | M8 | 72.4 | 2D / 3D | |
|
CHAC45HF | CF4.5-FIX-HOLE | 113.5 | 60.5 | 63.5 | 40 | 30.5 | 8 | 8.6 | 92.1 | ROTA | 2D / 3D |
|
CHAC45TF | CF4.5-FIX-TAB | 113.5 | 60.5 | 63.5 | 40 | 30.5 | 8 | M8 | 92.1 |  |
2D / 3D |
|
CHAC45HR | CF4.5-ROTA-HOLE | 113.5 | 60.5 | 63.5 | 40 | 29.3 | 8 | 8.6 | 92.1 | 2D / 3D | |
|
CHAC45TR | CF4.5-ROTA-TAB | 113.5 | 60.5 | 63.5 | 40 | 29.3 | 8 | M8 | 92.1 | 2D / 3D | |
|
CHAC06HF | CF6-FIX-HOLE | 152 | 97.6 | 101.6 | 40 | 30 | 16 | 8.6 | 130.2 | 2D / 3D | |
|
CHAC06TF | CF6-FIX-TAB | 152 | 97.6 | 101.6 | 40 | 30 | 16 | M8 | 130.2 | 2D / 3D | |
|
CHAC06HR | CF6-ROTA-HOLE | 152 | 97.6 | 101.6 | 40 | 28.7 | 16 | 8.6 | 130.2 | 2D / 3D | |
|
CHAC06TR | CF6-ROTA-TAB | 152 | 97.6 | 101.6 | 40 | 28.7 | 16 | M8 | 130.2 | 2D / 3D | |
|
CHAC08HF | CF8-FIX-HOLE | 203 | 148.4 | 152.4 | 40 | 28 | 20 | 8.6 | 181 | 2D / 3D | |
|
CHAC08TF | CF8-FIX-TAB | 203 | 148.4 | 152.4 | 40 | 28 | 20 | M8 | 181 | 2D / 3D | |
|
CHAC08HR | CF8-ROTA-HOLE | 203 | 148.4 | 152.4 | 40 | 27.2 | 20 | 8.6 | 181 | 2D / 3D | |
|
CHAC08TR | CF8-ROTA-TAB | 203 | 148.4 | 152.4 | 40 | 27.2 | 20 | M8 | 181 | 2D / 3D | |
|
CHAC10HF | CF10-FIX-HOLE | 254 | 196.4 | 203.2 | 40 | 27 | 24 | 8.6 | 231.8 | 2D / 3D | |
|
CHAC10TF | CF10-FIX-TAB | 254 | 196.4 | 203.2 | 40 | 27 | 24 | M8 | 231.8 | 2D / 3D | |
|
CHAC10HR | CF10-ROTA-HOLE | 254 | 196.4 | 203.2 | 40 | 27.8 | 24 | 8.6 | 231.8 | 2D / 3D | |
|
CHAC10TR | CF10-ROTA-TAB | 254 | 196.4 | 203.2 | 40 | 27.8 | 24 | M8 | 231.8 | 2D / 3D |
