| P/N | SIZE | ØA | ØB | D | d | 90° | 45° |  |
|
|---|---|---|---|---|---|---|---|---|---|
 |

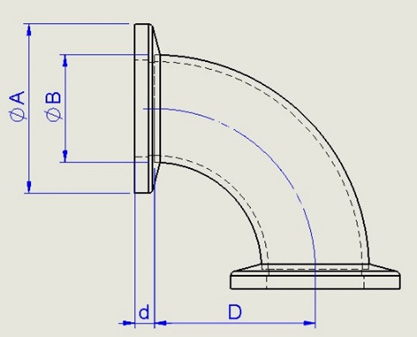

DELN016 | NW16 | 30 | 19.05 | 28.5 | 3.5 |  |
 |
2D / 3D |
|

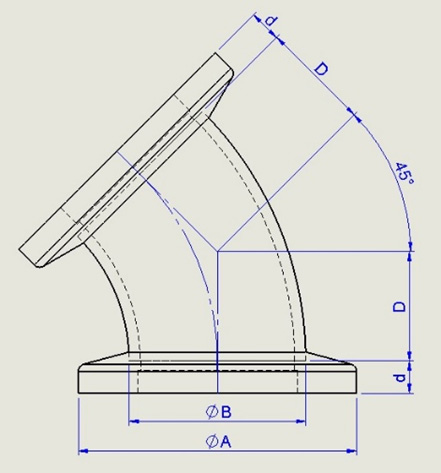

DELN016F | NW16-45° | 30 | 19.05 | 11.8 | 3.5 | 2D / 3D | ||
|
DELN025 | NW25 | 40 | 25.4 | 35 | 3.5 | 2D / 3D | ||
|
DELN025F | NW25-45° | 40 | 25.4 | 14.5 | 3.5 | 2D / 3D | ||
|
DELN040 | NW40 | 55 | 38.1 | 50 | 3.5 | 2D / 3D | ||
|
DELN040F | NW40-45° | 55 | 38.1 | 20.7 | 3.5 | 2D / 3D | ||
|
DELN050 | NW50 | 75 | 50.8 | 60 | 3.5 | 2D / 3D | ||
|
DELN050F | NW50-45° | 75 | 50.8 | 24.9 | 3.5 | 2D / 3D | ||
|
DELN063 | NW63 | 95 | 63.5 | 79 | 7 | 2D / 3D | ||
|
DELN063F | NW63-45° | 95 | 63.5 | 32.7 | 7 | 2D / 3D | ||
|
DELN080 | NW80 | 114 | 76.3 | 82 | 7 | 2D / 3D | ||
|
DELN080F | NW80-45° | 114 | 76.3 | 34 | 7 | 2D / 3D | ||
|
DELN100 | NW100 | 134 | 101.6 | 130 | 7 | 2D / 3D | ||
|
DELN100F | NW100-45° | 134 | 101.6 | 53.8 | 7 | 2D / 3D |
