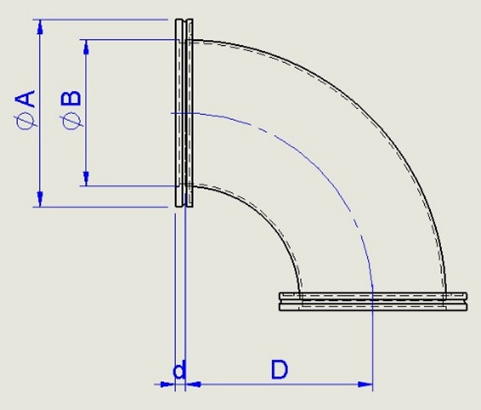

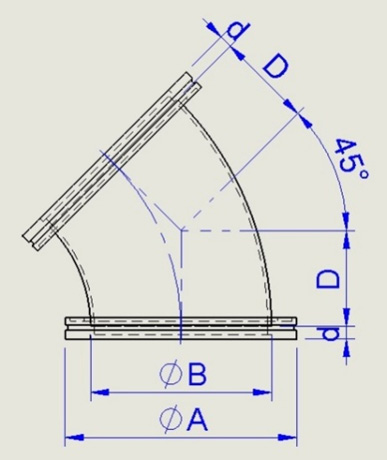

| P/N | SIZE | ØA | ØB | D | d | 90° | 45° |  |
|
|---|---|---|---|---|---|---|---|---|---|
 |
DELK063 | ISOK63 | 95 | 63.5 | 79 | 7 |  |
 |
2D / 3D |
|
DELK063F | ISOK63-45° | 95 | 63.5 | 32.7 | 7 | 2D / 3D | ||
|
DELK080 | ISOK80 | 110 | 76.3 | 82 | 7 | 2D / 3D | ||
|
DELK080F | ISOK80-45° | 110 | 76.3 | 34 | 7 | 2D / 3D | ||
|
DELK100 | ISOK100 | 130 | 101.6 | 130 | 7 | 2D / 3D | ||
|
DELK100F | ISOK100-45° | 130 | 101.6 | 53.9 | 7 | 2D / 3D | ||
|
DELK125 | ISOK125 | 155 | 139.8 | 127 | 7 | 2D / 3D | ||
|
DELK125F | ISOK125-45° | 155 | 139.8 | 78.9 | 7 | 2D / 3D | ||
|
DELK160 | ISOK160 | 180 | 165.2 | 152.4 | 7 | 2D / 3D | ||
|
DELK160F | ISOK160-45° | 180 | 165.2 | 94.7 | 7 | 2D / 3D | ||
|
DELK200 | ISOK200 | 240 | 216.3 | 203.2 | 7 | 2D / 3D | ||
|
DELK200F | ISOK200-45° | 240 | 216.3 | 126.3 | 7 | 2D / 3D | ||
|
DELK250 | ISOK250 | 290 | 267.4 | 254 | 7 | 2D / 3D | ||
|
DELK250F | ISOK250-45° | 290 | 267.4 | 157.8 | 7 | 2D / 3D |
