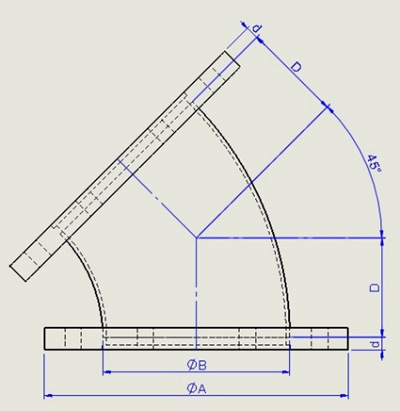

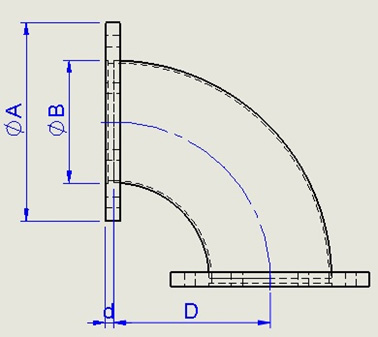

| P/N | SIZE | ØA | ØB | D | d | 90° | 45° |  |
|
|---|---|---|---|---|---|---|---|---|---|
 |
DELF063 | ISOF63 | 130 | 63.5 | 79 | 7 |  |
 |
2D / 3D |
|
DELF063F | ISOF63-45° | 130 | 63.5 | 32.7 | 7 | 2D / 3D | ||
|
DELF080 | ISOF80 | 145 | 76.3 | 82 | 7 | 2D / 3D | ||
|
DELF080F | ISOF80-45° | 145 | 76.3 | 34 | 7 | 2D / 3D | ||
|
DELF100 | ISOF100 | 165 | 101.6 | 130 | 7 | 2D / 3D | ||
|
DELF100F | ISOF100-45° | 165 | 101.6 | 53.9 | 7 | 2D / 3D | ||
|
DELF160 | ISOF160 | 225 | 165.2 | 152.4 | 7 | 2D / 3D | ||
|
DELF160F | ISOF160-45° | 225 | 165.2 | 94.7 | 7 | 2D / 3D | ||
|
DELF200 | ISOF200 | 285 | 216.3 | 203.2 | 7 | 2D / 3D | ||
|
DELF200F | ISOF200-45° | 285 | 216.3 | 126.3 | 7 | 2D / 3D | ||
|
DELF250 | ISOF250 | 335 | 267.4 | 254 | 7 | 2D / 3D | ||
|
DELF250F | ISOF250-45° | 335 | 267.4 | 157.8 | 7 | 2D / 3D |
