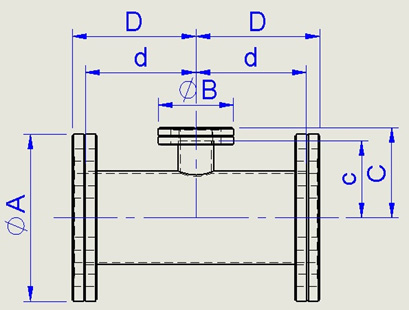

| P/N | SIZE | ØA | ØB | C | c | D | d | FIX |  |
|
|---|---|---|---|---|---|---|---|---|---|---|
 |
CTEC2127HF | CF2.125,2.75(3H-3F) | 69.5 | 53.8 | 48.9 | 40 | 55.7 | 50 |  |
2D / 3D |
|
CTEC2127HR | CF2.125,2.75(3H-3R) | 69.5 | 53.8 | 45.9 | 40 | 55.7 | 50 | 2D / 3D | |
|
CTEC2127TF | CF2.125,2.75(3T-3F) | 69.5 | 53.8 | 48.9 | 40 | 55.7 | 50 | 2D / 3D | |
|
CTEC2127TR | CF2.125,2.75(3T-3R) | 69.5 | 53.8 | 45.9 | 40 | 55.7 | 50 | 2D / 3D | |
|
CTEC2133HF | CF2.125,3.375(3H-3F) | 86 | 53.8 | 56.5 | 47.6 | 68 | 60 | 2D / 3D | |
|
CTEC2133HR | CF2.125,3.375(3H-3R) | 86 | 53.8 | 53.5 | 47.6 | 67.5 | 60 | 2D / 3D | |
|
CTEC2133TF | CF2.125,3.375(3T-3F) | 86 | 53.8 | 56.5 | 47.6 | 68 | 60 | 2D / 3D | |
|
CTEC2133TR | CF2.125,3.375(3T-3R) | 86 | 53.8 | 53.5 | 47.6 | 67.5 | 60 | 2D / 3D | |
|
CTEC2145HF | CF2.125,4.5(3H-3F) | 113.5 | 53.8 | 61.2 | 52.3 | 88.5 | 79 | 2D / 3D | |
|
CTEC2145HR | CF2.125,4.5(3H-3R) | 113.5 | 53.8 | 58.2 | 52.3 | 89.7 | 79 | 2D / 3D | |
|
CTEC2145TF | CF2.125,4.5(3T-3F) | 113.5 | 53.8 | 61.2 | 52.3 | 88.5 | 79 | 2D / 3D | |
|
CTEC2145TR | CF2.125,4.5(3T-3R) | 113.5 | 53.8 | 58.2 | 52.3 | 89.7 | 79 | 2D / 3D | |
|
CTEC2733HF | CF2.75,3.375(3H-3F) | 86 | 69.5 | 64.3 | 58.6 | 68 | 60 | 2D / 3D | |
|
CTEC2733HR | CF2.75,3.375(3H-3R) | 86 | 69.5 | 64.3 | 58.6 | 67.5 | 60 | 2D / 3D | |
|
CTEC2733TF | CF2.75,3.375(3T-3F) | 86 | 69.5 | 64.3 | 58.6 | 68 | 60 | 2D / 3D | |
|
CTEC2733TR | CF2.75,3.375(3T-3R) | 86 | 69.5 | 64.3 | 58.6 | 67.5 | 60 | 2D / 3D | |
|
CTEC2745HF | CF2.75,4.5(3H-3F) | 113.5 | 69.5 | 69 | 63.3 | 88.5 | 79 | ROTA | 2D / 3D |
|
CTEC2745HR | CF2.75,4.5(3H-3R) | 113.5 | 69.5 | 69 | 63.3 | 89.7 | 79 |  |
2D / 3D |
|
CTEC2745TF | CF2.75,4.5(3T-3F) | 113.5 | 69.5 | 69 | 63.3 | 88.5 | 79 | 2D / 3D | |
|
CTEC2745TR | CF2.75,4.5(3T-3R) | 113.5 | 69.5 | 69 | 63.3 | 89.7 | 79 | 2D / 3D | |
|
CTEC3345HF | CF3.375,4.5(3H-3F) | 113.5 | 86 | 77.3 | 69.3 | 88.5 | 79 | 2D / 3D | |
|
CTEC3345HR | CF3.375,4.5(3H-3R) | 113.5 | 86 | 76.8 | 69.3 | 89.7 | 79 | 2D / 3D | |
|
CTEC3345TF | CF3.375,4.5(3T-3F) | 113.5 | 86 | 77.3 | 69.3 | 88.5 | 79 | 2D / 3D | |
|
CTEC3345TR | CF3.375,4.5(3T-3R) | 113.5 | 86 | 76.8 | 69.3 | 89.7 | 79 | 2D / 3D | |
|
CTEC3306HF | CF3.375,6(3H-3F) | 152 | 86 | 105 | 97 | 140 | 130 | 2D / 3D | |
|
CTEC3306HR | CF3.375,6(3H-3R) | 152 | 86 | 104.5 | 97 | 141.3 | 130 | 2D / 3D | |
|
CTEC3306TF | CF3.375,6(3T-3F) | 152 | 86 | 105 | 97 | 140 | 130 | 2D / 3D | |
|
CTEC3306TR | CF3.375,6(3T-3R) | 152 | 86 | 104.5 | 97 | 141.3 | 130 | 2D / 3D | |
|
CTEC4506HF | CF4.5,6(3H-3F) | 152 | 113.5 | 122.5 | 113 | 140 | 130 | 2D / 3D | |
|
CTEC4506HR | CF4.5,6(3H-3R) | 152 | 113.5 | 123.7 | 113 | 141.3 | 130 | 2D / 3D | |
|
CTEC4506TF | CF4.5,6(3T-3F) | 152 | 113.5 | 122.5 | 113 | 140 | 130 | 2D / 3D | |
|
CTEC4506TR | CF4.5,6(3T-3R) | 152 | 113.5 | 123.7 | 113 | 141.3 | 130 | 2D / 3D |
