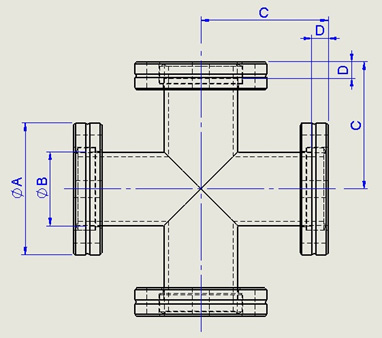

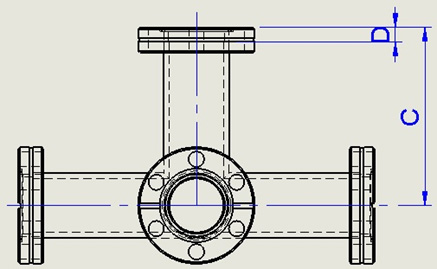

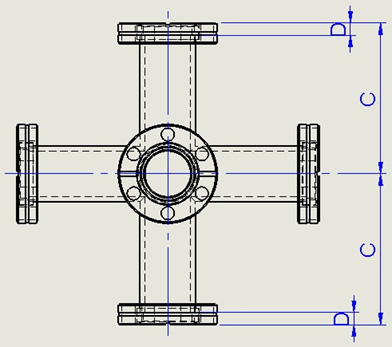

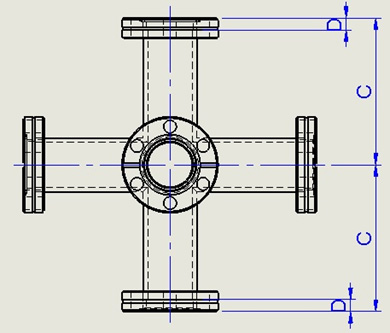

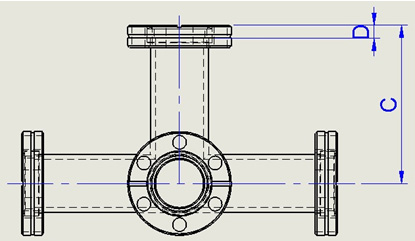

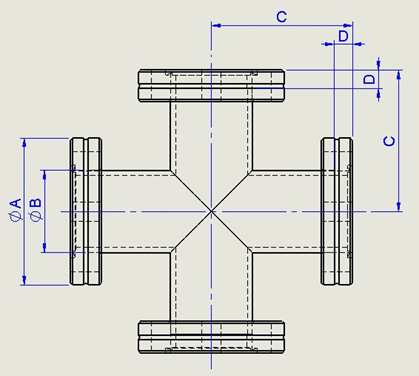

| P/N | SIZE | ØA | ØB | C | D | 4WAY-FIX | 4WAY-ROTA |  |
|
|---|---|---|---|---|---|---|---|---|---|
 |
CROC13TF | CF1.33-4WAY-FIX | 34 | 19.05 | 32.8 | 4.3 |  |
 |
2D / 3D |
|
CROC13TR | CF1.33-4WAY-ROTA | 34 | 19.05 | 32.8 | 4.3 | 2D / 3D | ||
|
CRO5C13TF | CF1.33-5WAY-FIX | 34 | 19.05 | 51.9 | 4.3 | 2D / 3D | ||
|
CRO5C13TR | CF1.33-5WAY-ROTA | 34 | 19.05 | 51.9 | 4.3 | 2D / 3D | ||
|
CRO6C13TF | CF1.33-6WAY-FIX | 34 | 19.05 | 51.9 | 4.3 | 2D / 3D | ||
|
CRO6C13TR | CF1.33-6WAY-ROTA | 34 | 19.05 | 51.9 | 4.3 | 2D / 3D | ||
|
CROC21TF | CF2.125-4WAY-FIX | 53.8 | 25.4 | 43.9 | 8.9 | 2D / 3D | ||
|
CROC21TR | CF2.125-4WAY-ROTA | 53.8 | 25.4 | 40.9 | 5.9 | 2D / 3D | ||
|
CRO5C21TF | CF2.125-5WAY-FIX | 53.8 | 25.4 | 56.5 | 8.9 | 2D / 3D | ||
|
CRO5C21TR | CF2.125-5WAY-ROTA | 53.8 | 25.4 | 53.5 | 5.9 | 2D / 3D | ||
|
CRO6C21TF | CF2.125-6WAY-FIX | 53.8 | 25.4 | 56.5 | 8.9 | 2D / 3D | ||
|
CRO6C21TR | CF2.125-6WAY-ROTA | 53.8 | 25.4 | 53.5 | 5.9 | 2D / 3D | ||
|
CROC27TF | CF2.75-4WAY-FIX | 69.5 | 38.1 | 55.7 | 5.7 | 5WAY-FIX | 5WAY-ROTA | 2D / 3D |
|
CROC27TR | CF2.75-4WAY-ROTA | 69.5 | 38.1 | 55.7 | 5.7 |  |
 |
2D / 3D |
|
CRO5C27TF | CF2.75-5WAY-FIX | 69.5 | 38.1 | 62.9 | 5.7 | 2D / 3D | ||
|
CRO5C27TR | CF2.75-5WAY-ROTA | 69.5 | 38.1 | 62.9 | 5.7 | 2D / 3D | ||
|
CRO6C27TF | CF2.75-6WAY-FIX | 69.5 | 38.1 | 62.9 | 5.7 | 2D / 3D | ||
|
CRO6C27TR | CF2.75-6WAY-ROTA | 69.5 | 38.1 | 62.9 | 5.7 | 2D / 3D | ||
|
CROC33TF | CF3.375-4WAY-FIX | 86 | 50.8 | 68 | 8 | 2D / 3D | ||
|
CROC33TR | CF3.375-4WAY-ROTA | 86 | 50.8 | 67.5 | 7.5 | 2D / 3D | ||
|
CRO5C33TF | CF3.375-5WAY-FIX | 86 | 50.8 | 84.2 | 8 | 2D / 3D | ||
|
CRO5C33TR | CF3.375-5WAY-ROTA | 86 | 50.8 | 83.7 | 7.5 | 2D / 3D | ||
|
CRO6C33TF | CF3.375-6WAY-FIX | 86 | 50.8 | 84.2 | 8 | 2D / 3D | ||
|
CRO6C33TR | CF3.375-6WAY-ROTA | 86 | 50.8 | 83.7 | 7.5 | 2D / 3D | ||
|
CROC45TF | CF4.5-4WAY-FIX | 113.5 | 63.5 | 88.5 | 9.5 | 6WAY-FIX | 6WAY-ROTA | 2D / 3D |
|
CROC45TR | CF4.5-4WAY-ROTA | 113.5 | 63.5 | 89.7 | 10.7 |  |
 |
2D / 3D |
|
CRO5C45TF | CF4.5-5WAY-FIX | 113.5 | 63.5 | 85.7 | 9.5 | 2D / 3D | ||
|
CRO5C45TR | CF4.5-5WAY-ROTA | 113.5 | 63.5 | 86.9 | 10.7 | 2D / 3D | ||
|
CRO6C45TF | CF4.5-6WAY-FIX | 113.5 | 63.5 | 85.7 | 9.5 | 2D / 3D | ||
|
CRO6C45TR | CF4.5-6WAY-ROTA | 113.5 | 63.5 | 86.9 | 10.7 | 2D / 3D | ||
|
CROC06TF | CF6-4WAY-FIX | 152 | 101.6 | 140 | 10 | 2D / 3D | ||
|
CROC06TR | CF6-4WAY-ROTA | 152 | 101.6 | 141.3 | 11.3 | 2D / 3D | ||
|
CRO5C06TF | CF6-5WAY-FIX | 152 | 101.6 | 108.4 | 10 | 2D / 3D | ||
|
CRO5C06TR | CF6-5WAY-ROTA | 152 | 101.6 | 109.7 | 11.3 | 2D / 3D | ||
|
CRO6C06TF | CF6-6WAY-FIX | 152 | 101.6 | 108.4 | 10 | 2D / 3D | ||
|
CRO6C06TR | CF6-6WAY-ROTA | 152 | 101.6 | 109.7 | 11.3 | 2D / 3D |
