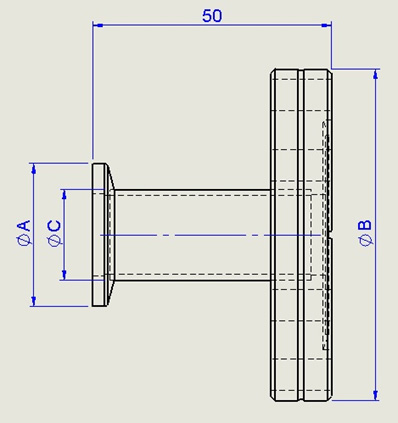

| P/N | SIZE | ØA | ØB | ØC |  |
 |
|
|---|---|---|---|---|---|---|---|
 |
CANC1613 | NW16, CF1.33 | 30 | 34 | 19.05 | 2D / 3D | |
|
CANC1627 | NW16, CF2.75 | 30 | 69.5 | 19.05 | 2D / 3D | |
|
CANC1606 | NW16, CF6 | 30 | 152 | 19.05 | 2D / 3D | |
|
CANC2513 | NW25, CF1.33 | 40 | 34 | 19.05 | 2D / 3D | |
|
CANC2527 | NW25, CF2.75 | 40 | 69.5 | 25.4 | 2D / 3D | |
|
CANC2545 | NW25, CF4.5 | 40 | 113.5 | 25.4 | 2D / 3D | |
|
CANC2506 | NW25, CF6 | 40 | 152 | 25.4 | 2D / 3D | |
|
CANC2508 | NW25, CF8 | 40 | 203 | 25.4 | 2D / 3D | |
|
CANC4013 | NW40, CF1.33 | 55 | 34 | 19.05 | 2D / 3D | |
|
CANC4027 | NW40, CF2.75 | 55 | 69.5 | 38.1 | 2D / 3D | |
|
CANC4045 | NW40, CF4.5 | 55 | 113.5 | 38.1 | 2D / 3D | |
|
CANC4006 | NW40, CF6 | 55 | 152 | 38.1 | 2D / 3D | |
|
CANC4008 | NW40, CF8 | 55 | 203 | 38.1 | 2D / 3D | |
|
CANC5013 | NW50, CF1.33 | 75 | 34 | 19.05 | 2D / 3D | |
|
CANC5027 | NW50, CF2.75 | 75 | 69.5 | 38.1 | 2D / 3D | |
|
CANC5045 | NW50, CF4.5 | 75 | 113.5 | 50.8 | 2D / 3D | |
|
CANC5006 | NW50, CF6 | 75 | 152 | 50.8 | 2D / 3D | |
|
CANC5008 | NW50, CF8 | 75 | 203 | 50.8 | 2D / 3D |
